Machine Guarding

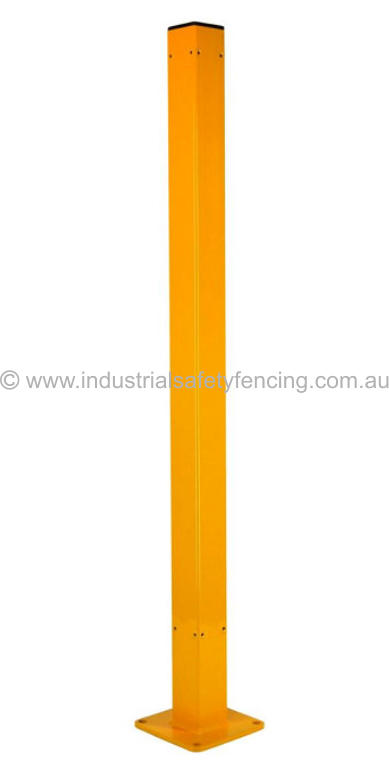

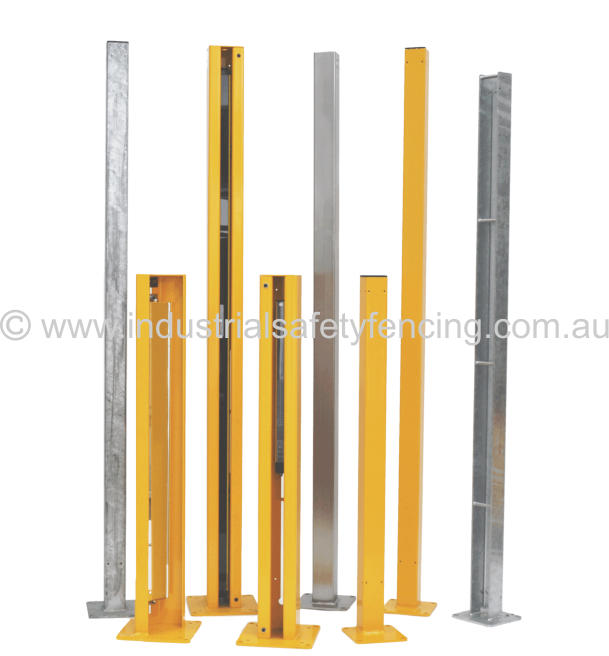

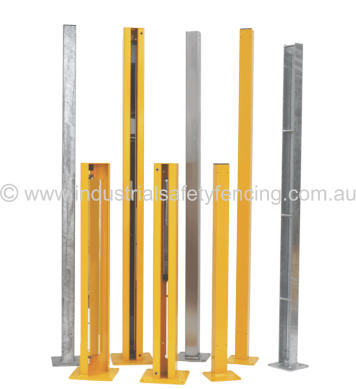

POSTS
•
Standard stocked heights - 1.2 metre and 2.0 metre tall
•
Standard powder-coated Safety Yellow
•
Custom post sizes and colours are also available
•
Posts are alike for doors and panels
•
No hardware included
•
Post caps are included
Contact Us Now on (03) 9303 9922 for all your modular safety fencing needs.

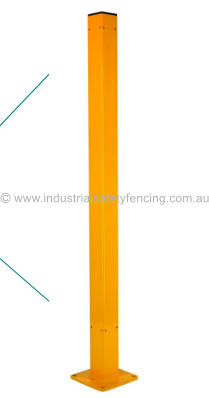

Mounting holes
punched & tapped
in all 4 sides of the
post, top & bottom
Product Code
PST(height)(base plate type)
PST2000COR

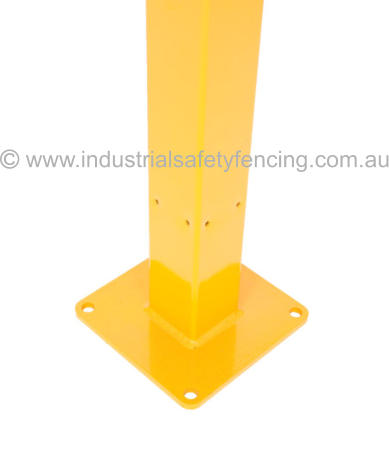

Base plate
180mm x 180mm x 8mm thick
75mm x 75mm x 2.5mm SHS

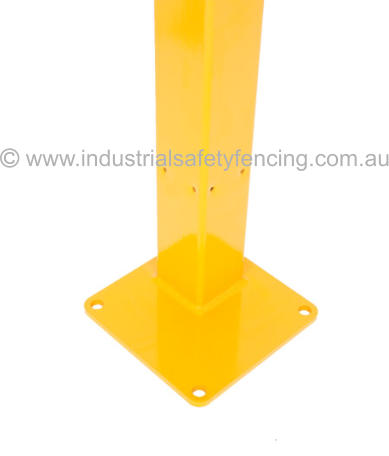

Central Base Plate CEN
The most commonly used post,
this post is good in most situations
and is the easiest for installations.
BASE PLATES

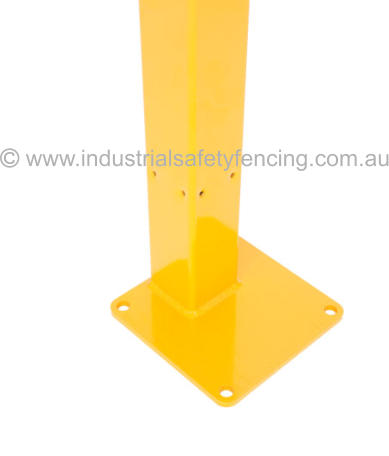

Offset Base Plate OFF
Most commonly used where a
fence is to terminate at a wall
and the reach through distance
needs to be minimised.
Also good for reducing the trip
hazard when running a fence
along a walkway.
Corner Base Plate CNR
Used to compliment the offset
post and in doorways.

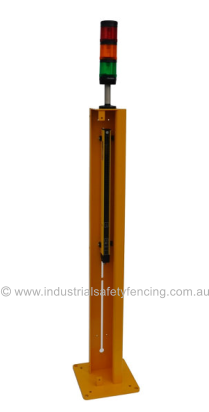

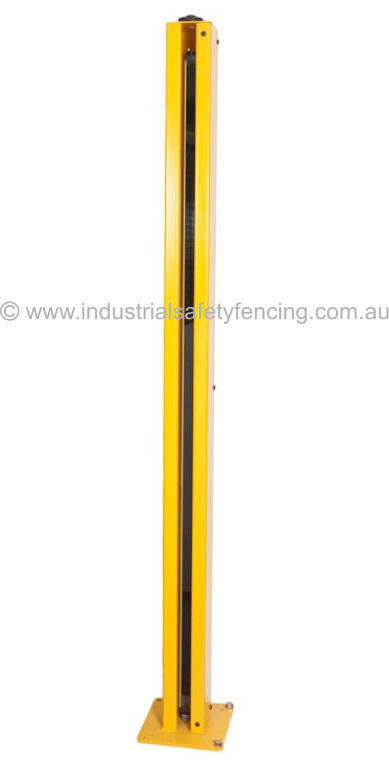

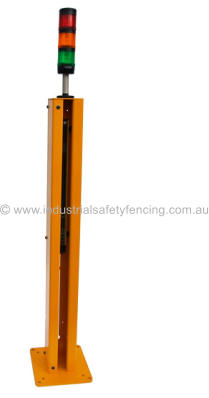

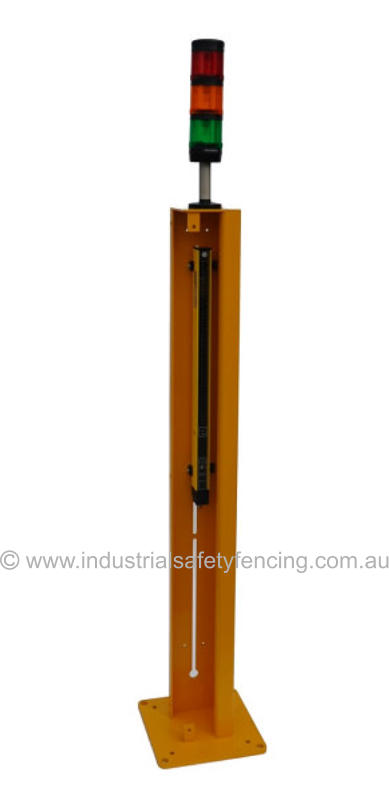

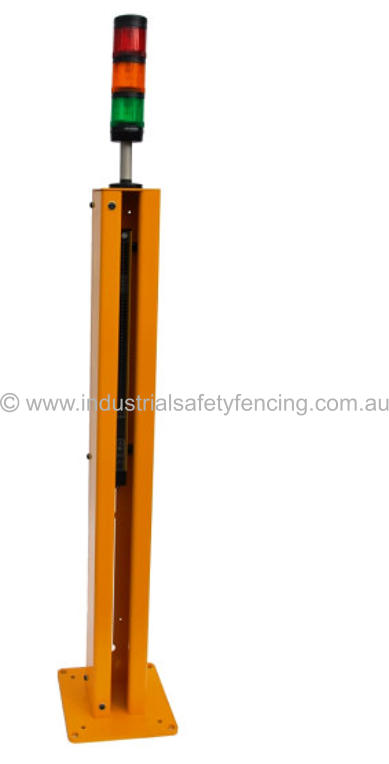

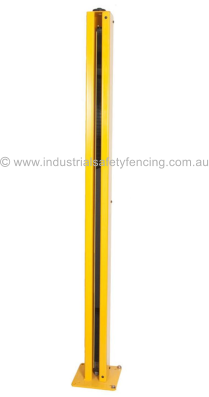

LIGHT CURTAIN POSTS
•
Light curtain is fully enclosed inside the post to minimise damage
•
Removable side panel for easy access
•
Muting sensor mounting slots
•
Multiple cable entry points
•
Integrates with all fencing components
•
Top access for light stack
•
Accepts all brands of light curtains
•
250mm x 250mm x 10mm base plate
•
Tapped leveling holes
•
Clear access to adjust light curtains
•
3 cable access points
Click on any image to enlarge
Click on any image to enlarge
Click on any image to enlarge
Product Code
PST(height)LC(right/left)
PST2000LCR
PST1200CEN
1.2m tall post, central base plate
Stocked item
PST1200COR
1.2m tall post, corner base plate
Stocked item
PST1200OFF
1.2m tall post, offset base plate
Stocked item
PST1200LCL
1.2m tall light curtain post - left, complete assembly
Stocked item
PST1200LCR
1.2m tall light curtain post - right, complete assembly
Stocked item
Part Number
Description
Part Numbers & Descriptions
Machine Guarding
Standard
PST2000CEN
2.0m tall post, central base plate
Stocked item
PST2000COR
2.0m tall post, corner base plate
Stocked item
PST2000OFF
2.0m tall post, offset base plate
Stocked item
PST2000LCL
2.0m tall light curtain post - left, complete assembly
Stocked item
PST2000LCR
2.0m tall light curtain post - right, complete assembly
Stocked item
PST2400CEN
2.4m tall post, central base plate
Made to order
PST2400COR
2.4m tall post, corner base plate
Made to order
PST2400OFF
2.4m tall post, offset base plate
Made to order
PST2400LCL
2.4m tall light curtain post - left, complete assembly
Made to order
PST2400LCR
2.4m tall light curtain post - right, complete assembly
Made to order
