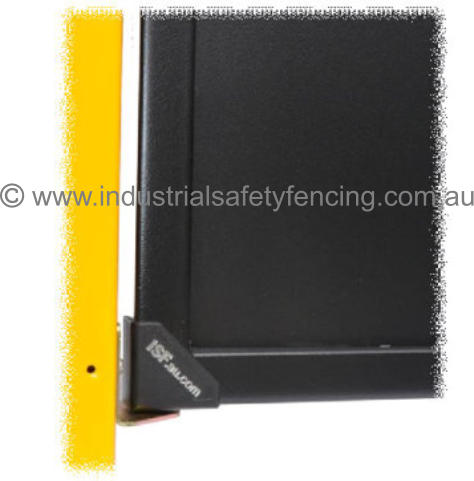

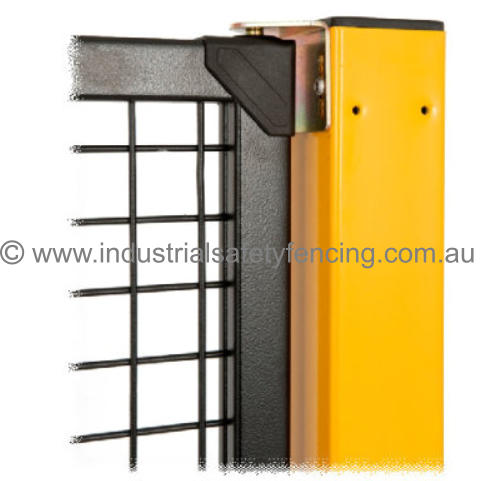

Infill Materials • Stock Panels - 40mm x 40mm x 4mm • Stock Panels - 25mm x 25mm x 3mm • Perforated Sheet • Solid • Glass or Polycarbonate STOCK PANELS - 40mm x 40mm x 4mm Welded Mesh • AS 4024.1 reach through distance of 200mm • Unless otherwise specified this mesh will be used on all fencing • Powder coated matt ripple black leather for optimum thru vision STOCK PANELS - 25mm x 25mm x 3mm Welded Mesh • AS 4024.1 reach through distance of 120mm • More commonly used in tighter areas, and to match existing fencing • Powder coated matt ripple black leather for optimum thru vision PERFORATED SHEET • AS 4024.1 reach through distance of 25mm • Most commonly used for machine guarding as machine is still visible but has a lower safety reach distance • Not effected by dirt and oil • Powder coated matt ripple black leather for optimum thru vision SOLID • AS 4024.1 reach through distance of 0mm • Commonly used in welding areas to stop arc flash and grinding cells to stop air borne particles • Powder coated matt ripple black leather for optimum thru vision • Guards available to enclose the gaps between the post and panels GLASS OR POLYCARBONATE • AS 4024.1 reach through distance of 0mm

Standard
