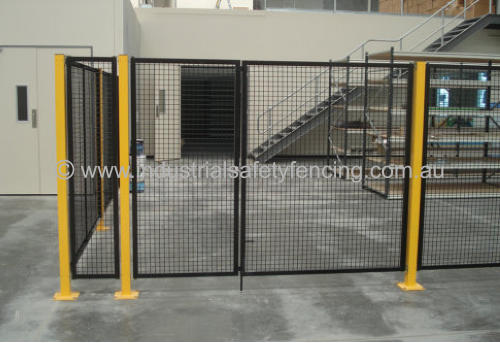

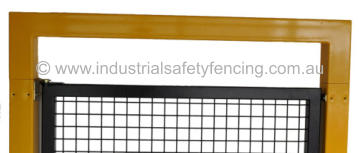

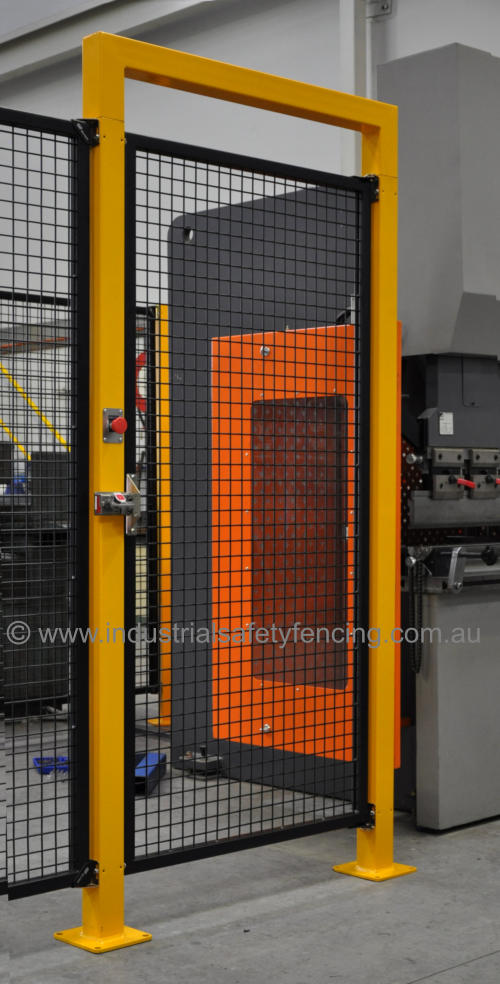

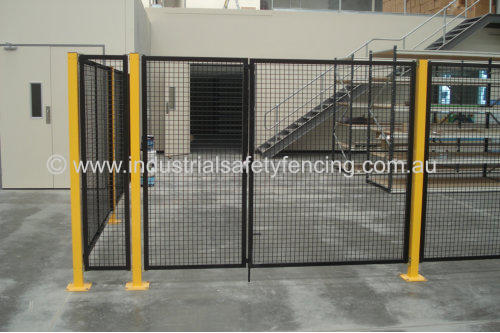

Doors • Single • Twin • Trackless Sliding Doors • Mezzanine Floor Gates • Self Closing • Door Spreader Bars SINGLE Single hinged doors up to 2.5 metres wide All hinged doors are capable of opening 180 degrees TWIN Twin hinged doors up to 5.0 metres wide All hinged doors are capable of opening 180 degrees TRACKLESS SLIDING DOORS Single sliding doors up to 2.5 metres wide Twin sliding doors up to 5.0 metres wide Standard Custom SELF CLOSING Optional self closing – low noise hydraulic dampening DOOR SPREADER BARS Adds rigidity to the door Gives a path to run cabling over doorways

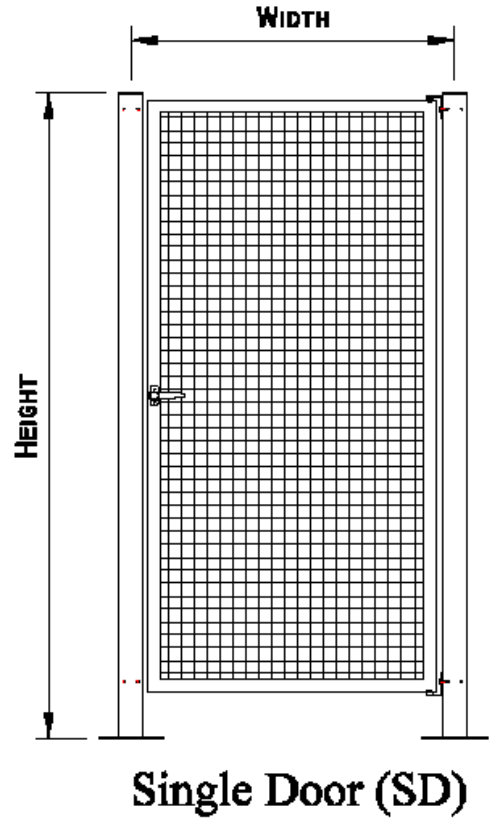

Product Code SD(height)(width) SD12001000

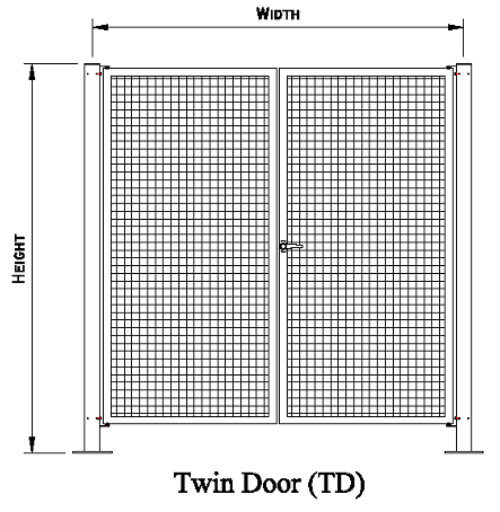

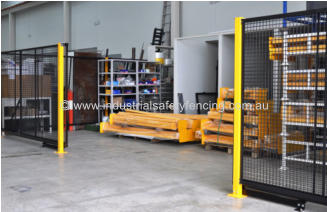

Product Code TD(height)(width) TD20002500

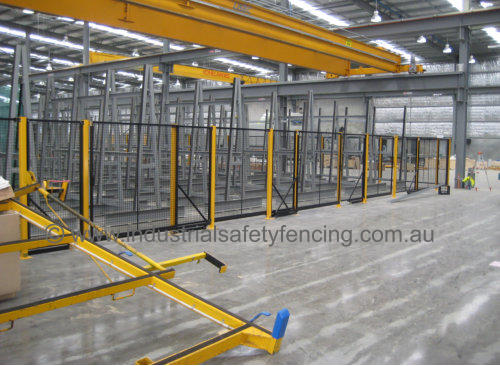

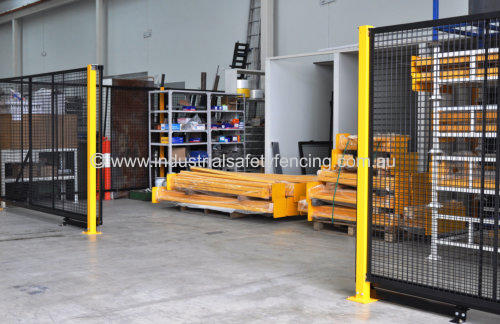

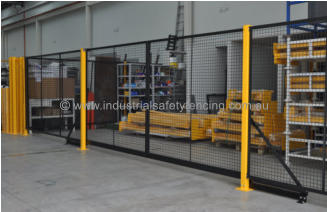

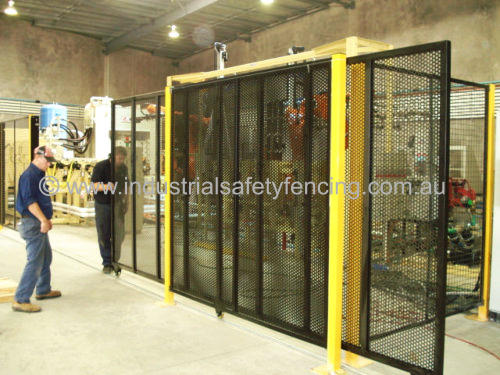

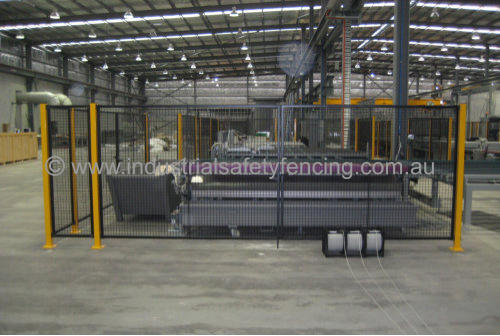

ISF’s standard sliding doors have no floor track to be a trip hazard and have no overhead track to be a hazard to tall machinery.

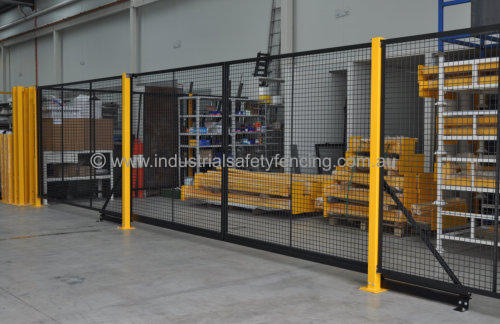

Product Code SLDC(T)(height)(WIDTH) SLDCT20004000

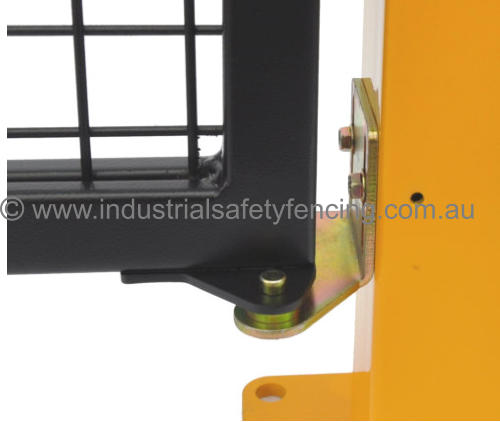

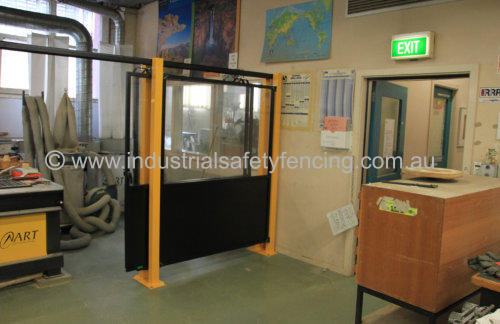

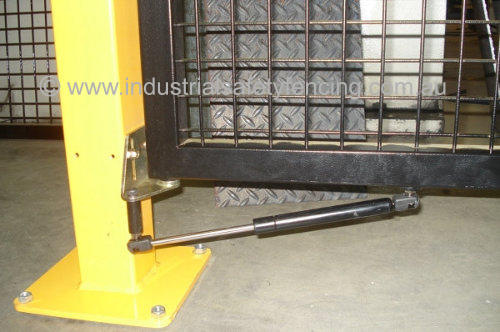

Product Code SD(height)(width)SC SD12001000SC

Product Code SLDC(T)(height)(WIDTH) SLDCT20005000

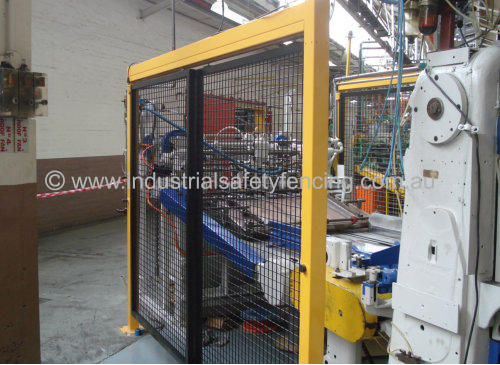

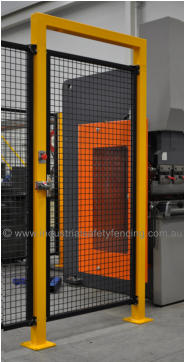

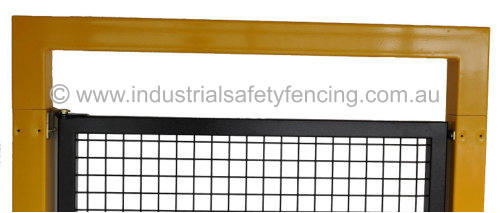

Product Code SB(width) SB1000

SB1000 Spreader bar to suit 1.0 m wide doors Stock SB1250 Spreader bar to suit 1.25 m wide doors Stock SB1500 Spreader bar to suit 1.5 m wide doors Stock SB2000 Spreader bar to suit 2.0 m wide doors Stock SB2500 Spreader bar to suit 2.5 m wide doors Stock SB3000 Spreader bar to suit 3.0 m wide doors Stock SB3500 Spreader bar to suit 3.5 m wide doors Stock SB4000 Spreader bar to suit 4.0 m wide doors Stock SB4500 Spreader bar to suit 4.5 m wide doors Stock SB5000 Spreader bar to suit 5.0 m wide doors Stock

Part Number Description

SD12001000 Single hinged door 1.2m tall x 1.0m wide Stock SD12001250 Single hinged door 1.2m tall x 1.25m wide Stock SD12001500 Single hinged door 1.2m tall x 1.5m wide Stock SD12002000 Single hinged door 1.2m tall x 2.0m wide Stock SD12002500 Single hinged door 1.2m tall x 2.5m wide Stock SD20001000 Single hinged door 2.0m tall x 1.0m wide Stock SD20001250 Single hinged door 2.0m tall x 1.25m wide Stock SD20001500 Single hinged door 2.0m tall x 1.5m wide Stock SD20002000 Single hinged door 2.0m tall x 2.0m wide Stock SD20002500 Single hinged door 2.0m tall x 2.5m wide Stock Custom Doors Sizes Available

Part Number Description

TD12001910 Twin hinged doors, 1.2m tall x 1.91m wide Stock TD12002160 Twin hinged doors, 1.2m tall x 2.16m wide Stock TD12002410 Twin hinged doors, 1.2m tall x 2.41m wide Stock TD12002660 Twin hinged doors, 1.2m tall x 2.66m wide Stock TD12002910 Twin hinged doors, 1.2m tall x 2.91m wide Stock TD12003160 Twin hinged doors, 1.2m tall x 3.16m wide Stock TD12003410 Twin hinged doors, 1.2m tall x 3.41m wide Stock TD12003660 Twin hinged doors, 1.2m tall x 3.66m wide Stock TD12003910 Twin hinged doors, 1.2m tall x 3.91m wide Stock TD12004410 Twin hinged doors, 1.2m tall x 4.41m wide Stock TD12004910 Twin hinged doors, 1.2m tall x 4.91m wide Stock TD20001910 Twin hinged doors, 2.0m tall x 1.91m wide Stock TD20002160 Twin hinged doors, 2.0m tall x 2.16m wide Stock TD20002410 Twin hinged doors, 2.0m tall x 2.41m wide Stock TD20002660 Twin hinged doors, 2.0m tall x 2.66m wide Stock TD20002910 Twin hinged doors, 2.0m tall x 2.91m wide Stock TD20003160 Twin hinged doors, 2.0m tall x 3.16m wide Stock TD20003410 Twin hinged doors, 2.0m tall x 3.41m wide Stock TD20003660 Twin hinged doors, 2.0m tall x 3.66m wide Stock TD20003910 Twin hinged doors, 2.0m tall x 3.91m wide Stock TD20004410 Twin hinged doors, 2.0m tall x 4.41m wide Stock TD20004910 Twin hinged doors, 2.0m tall x 4.91m wide Stock Custom Doors Sizes Available

Part Number Description

Standard

SLDC12001000 Single cantilever sliding door 1.2m tall x 1.0m wide Stock SLDC12001250 Single cantilever sliding door 1.2m tall x 1.25m wide Stock SLDC12001500 Single cantilever sliding door 1.2m tall x 1.5m wide Stock SLDC12002000 Single cantilever sliding door 1.2m tall x 2.0m wide Stock SLDC12002500 Single cantilever sliding door 1.2m tall x 2.5m wide Stock SLDCT12003000 Twin cantilever sliding door 1.2m tall x 3.0m wide (2 x 1.5m) Stock SLDCT12003500 Twin cantilever sliding door 1.2m tall x 3.5m wide (1 x 1.5m, 1 x 2.0m) Stock SLDCT12004000 Twin cantilever sliding door 1.2m tall x 4.0m wide (2 x 2.0m) Stock SLDCT12004500 Twin cantilever sliding door 1.2m tall x 4.5m wide (1 x 2.5m, 1 x 2.0m) Stock SLDCT12005000 Twin cantilever sliding door 1.2m tall x 5.0m wide (2 x 2.5m) Stock SLDC20001000 Single cantilever sliding door 2.0m tall x 1.0m wide Stock SLDC20001250 Single cantilever sliding door 2.0m tall x 1.25m wide Stock SLDC20001500 Single cantilever sliding door 2.0m tall x 1.5m wide Stock SLDC20002000 Single cantilever sliding door 2.0m tall x 2.0m wide Stock SLDC20002500 Single cantilever sliding door 2.0m tall x 2.5m wide Stock SLDCT20003000 Twin cantilever sliding door 2.0m tall x 3.0m wide (2 x 1.5m) Stock SLDCT20003500 Twin cantilever sliding door 2.0m tall x 3.5m wide (1 x 1.5m, 1 x 2.0m) Stock SLDCT20004000 Twin cantilever sliding door 2.0m tall x 4.0m wide (2 x 2.0m) Stock SLDCT20004500 Twin cantilever sliding door 2.0m tall x 4.5m wide (1 x 2.5m, 1 x 2.0m) Stock SLDCT20005000 Twin cantilever sliding door 2.0m tall x 5.0m wide (2 x 2.5m) Stock Custom Doors Sizes Available

Part Number Description

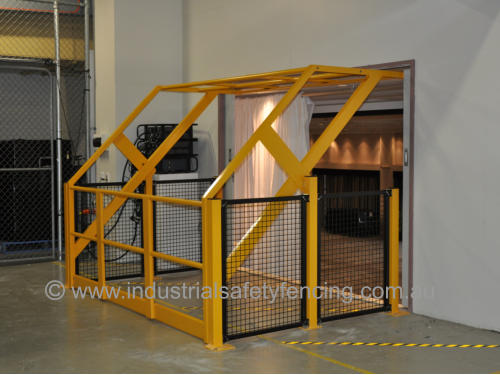

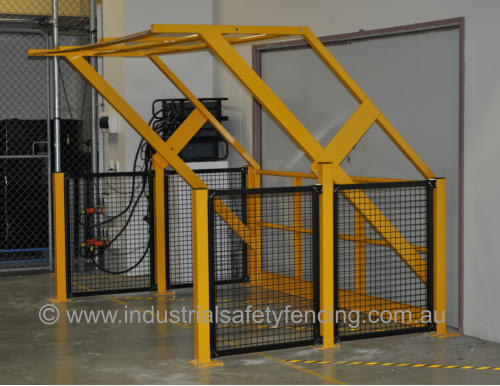

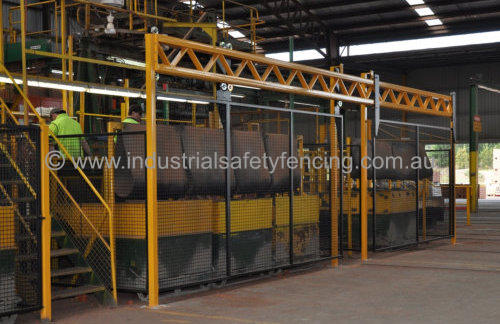

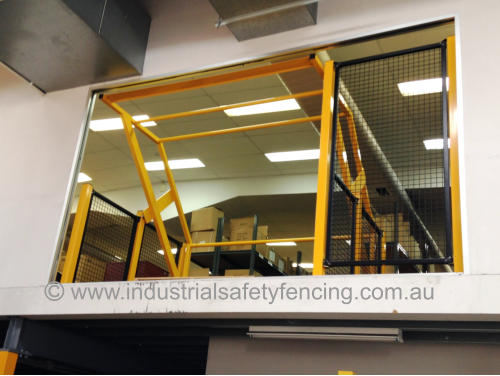

Industrial Safety Fencing manufactures to order, custom mezzanine floor gates to suit your existing opening or new applications. These gates can be disassembled for flat pack and are available in widths and heights to suit your requirements. Mezzgates can generally be designed to be well balanced so as to not require locking systems to hold them in place.
