Machine Guarding
Stainless Steel
Posts
Central base plate
PST-CN-1.2 / 2.0
Offset base plate
PST-OFF-1.2 / 2.0
Corner base plate
PST-COR-1.2 / 2.0
Central base plate
Stainless Steel
PST-CN-2.0-SS
Offset base plate
Stainless Steel
PST-OFF-2.0-SS
Panels
1.2 Meter Panel
EPNL-1.2
2.0 Meter Panel
EPNL-2.0
2.0 Meter Panel Stainless Steel
EPNL-2.0-SS
All panels 2.0 metres long
Doors
Doors and other accessories are available as per our standard ranges.
•
Available 1.2m and 2.0m height panels
•
All panels 2.0 metres long
•
Durable, strong construction
•
Light weight
•
Highly visible
•
Quick installation
•
Powder coated. Optional colour choices
•
Easily removable for maintenance access
•
Available in galvanised finish for external installations
•

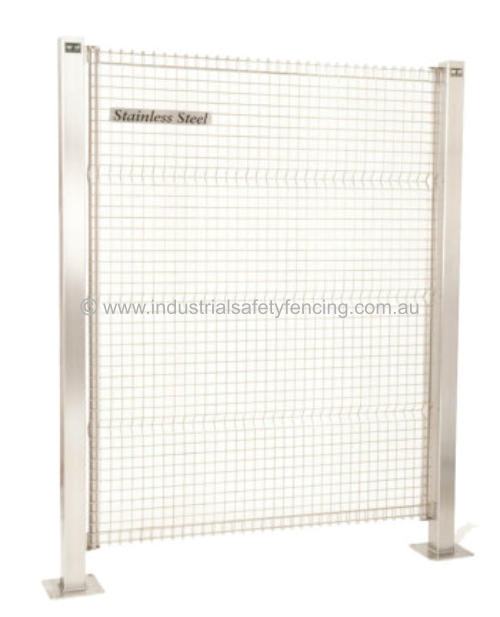

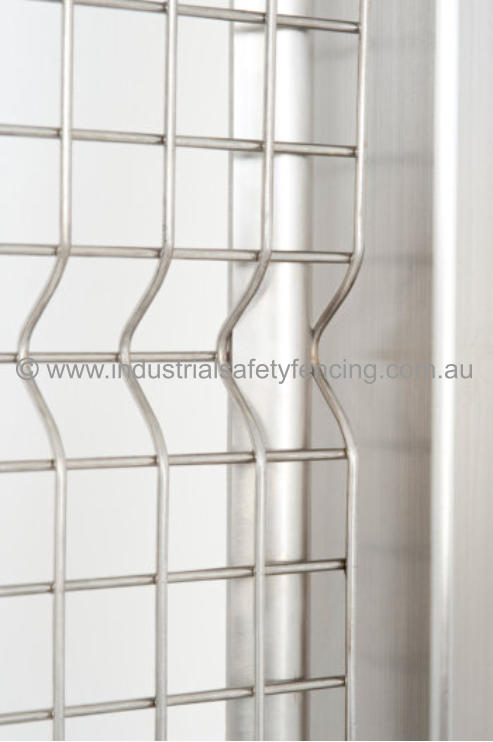

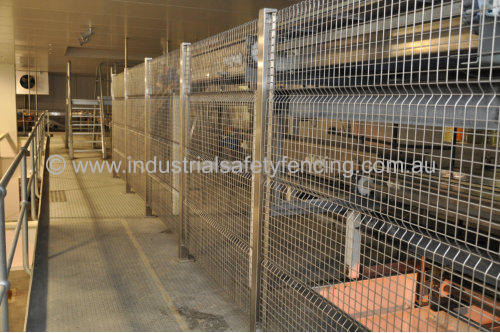

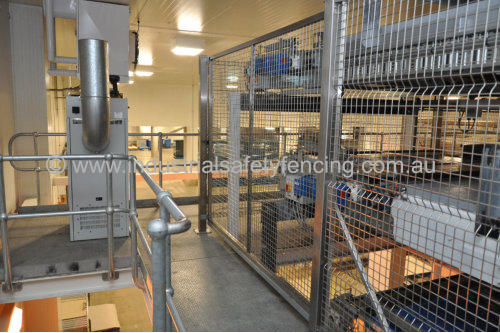

Now Available in 316 stainless steel, 2.0 metre tall only
Click on any image to enlarge

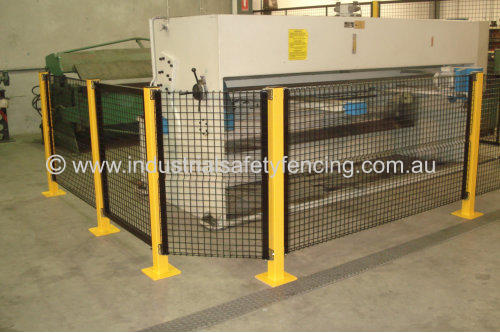

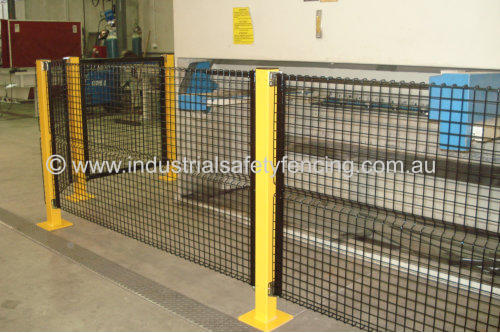

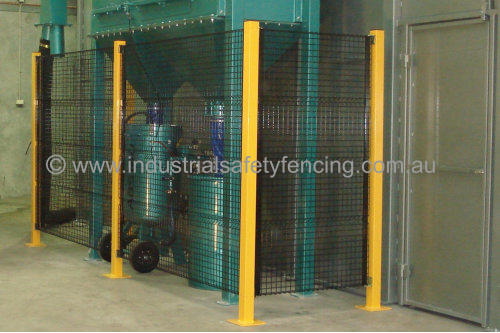

‘Easy Fence’
ISF ‘Easy Fence’ has been developed to eliminate the costly and time consuming need
for elaborate engineering drawings to manufacture a safety enclosure. Easy Fence’s
unique and patented design allows the installer to cut and modify panels on site,
without degrading the integrity or aesthetics of the panel. Standard panels eliminate
the long turn around times associated with special manufactured components,
therefore making your site safer, sooner.

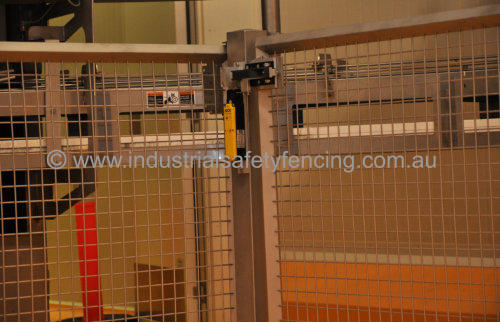

ISF Easy Fence integrates with all standard ISF components, including posts, doors,
accessories and electrical interlocks. When installed correctly Easy Fence meets all
requirements of Australian Standard 4024-1 for machinery guarding.

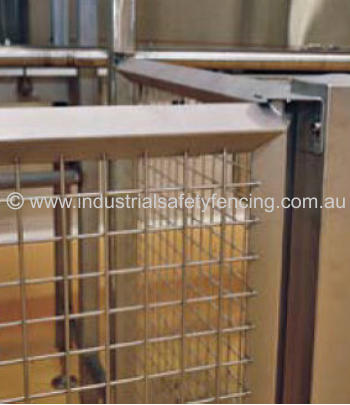

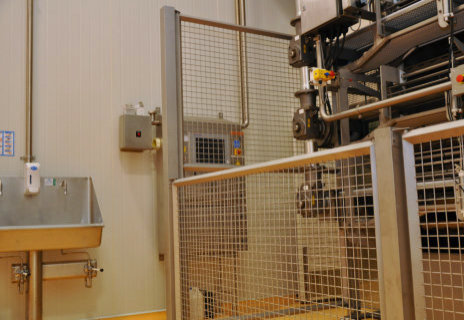

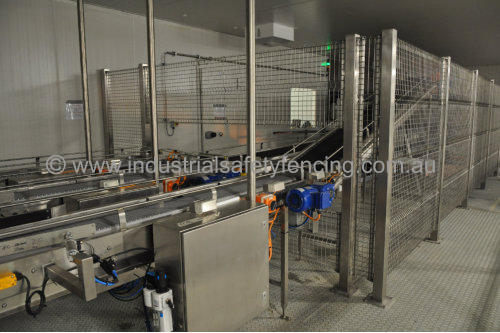

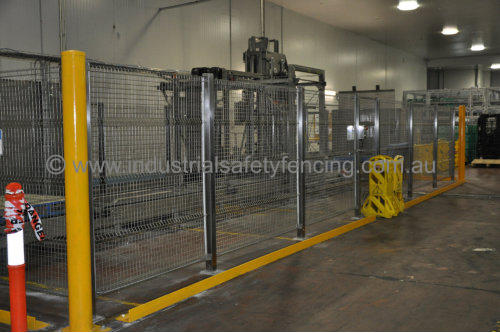

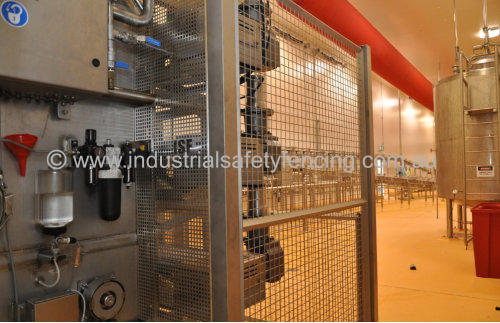

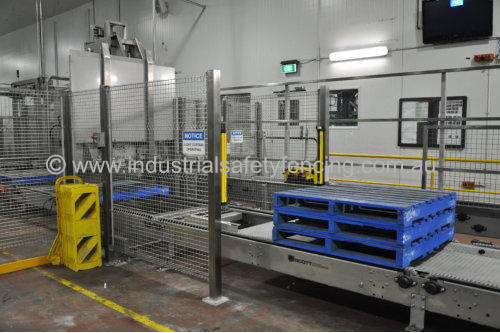

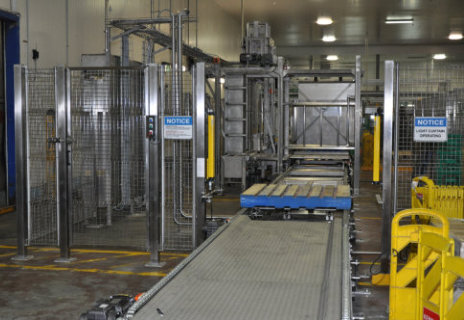

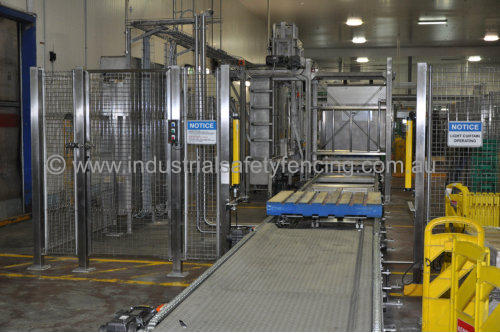

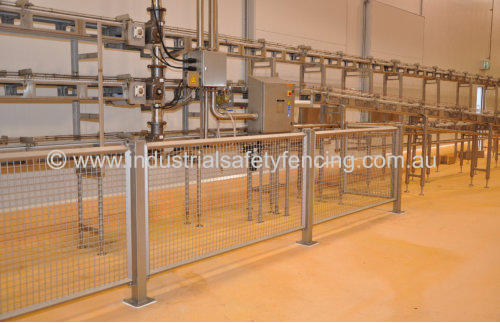

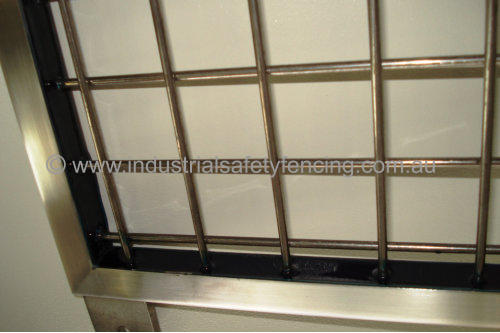

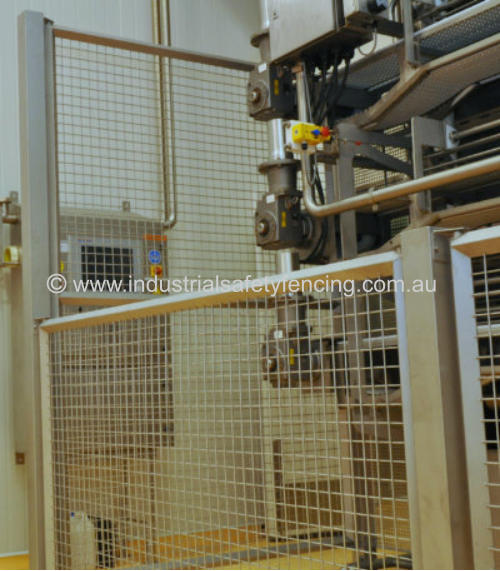

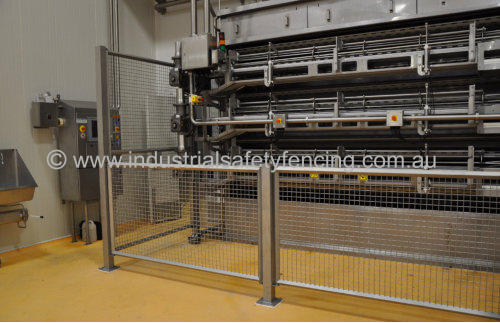

Tube On Edge Fencing
Tube On Edge safety fencing offers the highest standard in safety fencing.
Tube On Edge fencing is designed to eliminate virtually all horizontal flat surfaces where
liquids may pool, with special care taken to ensure all points of egress are identified.
Tube On Edge fencing is not carried in stock and will be manufactured to order.

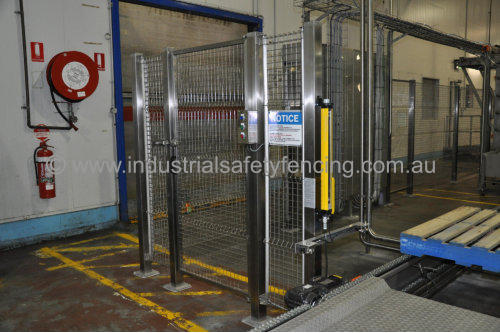

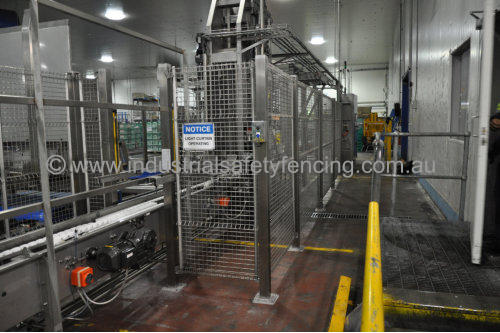

ISF has a large range of standard accessories including single and twin doors.
Posts are available ex stock with panel mounting points in all 4 sides, or can be ordered
with mounting point only as required.
All panel mounting points are threaded using sealed nutserts, so if a thread is not being
used it is sealed to prevent contamination entering the post.
Contact Us Now on (03) 9303 9922 for all your modular safety fencing needs.
Part Numbers & Descriptions
EPNL12002000
Easypanel, 1.2m tall x 2.0m long 40mm x 40mm x 4mm galvanised mild steel mesh
Stocked item
EPNL20002000
Easypanel, 2.0m tall x 2.0m long 40mm x 40mm x 4mm galvanised mild steel mesh
Stocked item
EPNL20002000SS
Easypanel, 2.0m tall x 2.0m long 40mm x 40mm x 4mm 316 stainless steel mesh
Stocked item
PST1200CEN
1.2m tall post, central base plate
Stocked item
PST1200COR
1.2m tall post, corner base plate
Stocked item
PST1200OFF
1.2m tall post, offset base plate
Stocked item
PST2000CEN
2.0m tall post, central base plate
Stocked item
PST2000COR
2.0m tall post, corner base plate
Stocked item
PST2000OFF
2.0m tall post, offset base plate
Stocked item
PST2000CENSS
2.0m tall post, central base plate. Stainless steel.
Made to order
PST2000CORSS
2.0m tall post, corner base plate. Stainless steel.
Made to order
PST2000OFFSS
2.0m tall post, offset base plate. Stainless steel.
Made to order
Part Number
Description
